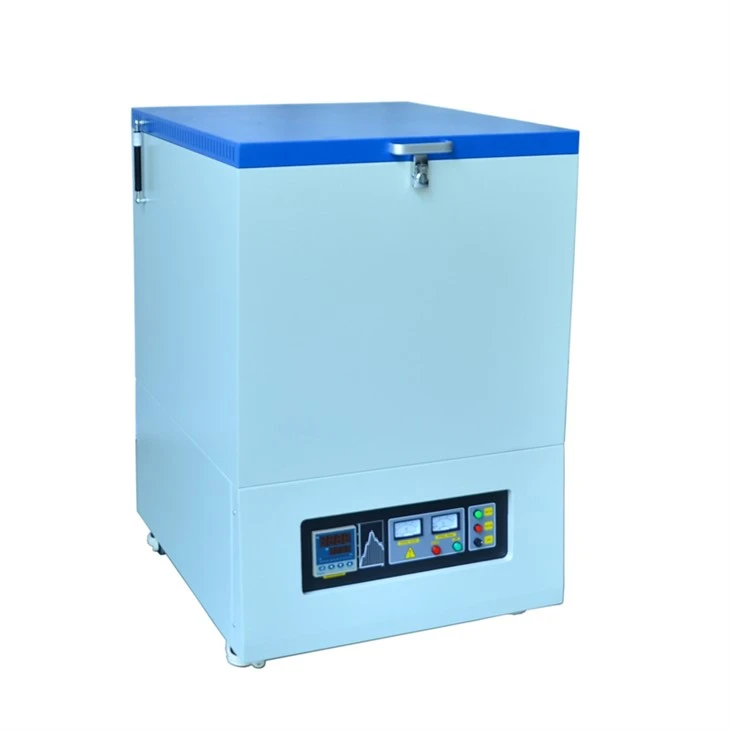

Laboratory crucible furnaces siv ob chav carbon steel txheej plhaub thiab 30 ntu PID tswj. Lub tshuab hluav taws xob muaj lub siab purity alumina polycrystalline fiber ntau cib thiab zoo MoSi2 cua sov caij. Lub tshuab hluav taws xob muaj qhov zoo ntawm qhov ntsuas kub tsis sib xws, qhov kub tsis tshua muaj siab, cua kub ceev thiab txias ceev, thiab txuag hluav taws xob;

Nws yog cov cuab yeej tshwj xeeb tsim tshwj xeeb rau sintering thiab melting tsom xam ntawm cov hlau, tsis yog hlau thiab lwm cov ntaub ntawv sib xyaw hauv cov chaw soj nstuam ntawm cov tsev kawm qib siab, cov koom haum tshawb fawb tshawb fawb thiab cov lag luam thiab cov lag luam mining.

● Cov khoom cua kub zoo;

● PID tsis siv neeg tswj thiab nws pib-tune muaj nuj nqi.

● Intelligently programmable maub los, Teem cov kev pab cuam dawb;

● Txawv chamber loj tuaj yeem hloov kho.

Rauv Shell Structure:	Muab ob npaug rau txheej carbon steel phaj plhaub, nto txau nrog cov tshuaj tua hluav taws kub resistant yas hmoov txheej kom paub meej tias qhov kub ntawm qhov cub tawg yog tsawg dua lossis sib npaug li 40.C;
Chamber Materials:	High-qib alumina fiber ceramic board thiab thermal rwb thaiv tsev paj rwb.
Rauv qhov rooj:	Sab saum toj loading qhov rooj;
Max. Kub:	1800.C
Ua haujlwm kub tsis tu ncua:	RT-1700.C, qhia tias yog 1650.C max.;
Cua sov ntsiab:	MoSi 2 rod
Hom Thermocouple:	B hom
Rated voltage & Lub zog:	AC 380V / 415V 50 / 60Hz; 22 kwv. Lub zog nyob ntawm qhov loj ntawm chamber.
Chamber loj:	250x250xH300, lwm qhov loj me yog muaj.
Cua sov tus nqi:	0-30.C /min, Suggest to use 10.C/min under 1400.C,1400.C-1600.C 5.C/min,>1600.C 1-2.C/min
Kub Precision:	±1.C ;
Kub Controller:	Temp. Controller nrog 1 qhov kev pab cuam cia muaj peev xwm thiab 30 ntu ramp & nyob; PID tsis siv neeg tswj thiab nws pib-tune muaj nuj nqi.Ua hauv kev tiv thaiv rau overheating thiab tawg thermocouple.
Xaiv qhov chaw:	Kov npo maub los, paperless recorder, Chaw taws teeb tswj kev sib txuas lus;
Warranty	Ib xyoos txwv warranty nrog kev txhawb nqa lub neej, tsis suav cov khoom cua sov, cov kiv cua txias, thermocouple thiab ceramic raj puas los ntawm cov neeg siv. Ceeb Toom: Txhua yam kev puas tsuaj los ntawm kev siv cov roj corrosive thiab acidic, thiab kev puas tsuaj los ntawm kev ua haujlwm tsis raug thiab kev siv tsis raug raws li kev pov hwm ntawm Ib Xyoo Txwv Warranty.

Standard Accessories

lab crucible rauv Optional:

Kov npo maub los, paperless recorder, Chaw taws teeb tswj kev sib txuas lus

Daim duab nthuav dav rau Lab Cruciblerauv:

Sab saum toj loading qhov rooj los ntawm hydraulic pas nrig tswj

Tsim nyog layout tswj vaj huam sib luag, yooj yim rau siv thiab khiav lag luam

Cov khoom cua kub zoo nrog 4 sab cua sov

Daim ntawv thov ntawmLab crucible cub

Laboratory crucible furnace yog dav siv nyob rau hauv scientific kev tshawb fawb thiab me me batch ntau lawm nyob rau hauv industrial thiab mining lag luam, raws li zoo raws li nyob rau hauv ceramics, metallurgy, electronics, iav, tshuaj lom neeg kev lag luam, machinery, refractory cov ntaub ntawv, tshiab cov ntaub ntawv tsim, tshwj xeeb cov ntaub ntawv, lub tsev ntaub ntawv, sintering. , lwm.

Lab crucible furnace Notes:

1. Tom qab siv lub qhov cub thawj zaug lossis tsis siv lub sijhawm ntev, nws yuav tsum tau ci ntawm li 120 degree rau 1 teev thiab ntawm li 300 degree rau 2 teev ua ntej siv, thiaj li tsis ua rau tawg hauv qhov cub. .

2. Lub qhov cub kub kub yog qhov tsawg, qhov loj ntawm qhov nqus cua sov yog qhov yuav tsum tau ua, yog li qhov cua kub ntawm qhov qis qis yuav tsum tsis txhob ceev heev, thiab qhov sib txawv ntawm cov cua kub ntawm txhua theem yuav tsum tsis txhob loj heev, thiab cov khoom ntawm lub cev thiab tshuaj lom neeg ntawm cov khoom siv sintered yuav tsum tau txiav txim siab tag nrho thaum teeb tsa cov cua sov, kom tsis txhob muaj qhov tshwm sim ntawm cov khoom txau thiab ua rau lub qhov cub ua paug.

3. Cov cua kub ntawm silicon-molybdenum pas nrig yuav tsum tsis txhob ua haujlwm ntev hauv qhov kub thiab txias ntawm 400-700 degree, txwv tsis pub kub oxidation yuav tshwm sim thiab lub neej kev pab cuam yuav raug cuam tshuam.

4. Qhov kub ntawm lub cub tawg yuav tsum tsis txhob siab tshaj qhov ntsuas kub kom tsis txhob muaj kev puas tsuaj rau cov cua sov thiab cov hauv ob sab phlu.

5. Qhov ntsuas cua txias yuav tsum tsis pub tshaj 10 degree / min, thiab cov blocks refractory yuav tsum tau muab tso ua ntej kaw qhov rooj.

6. Yuav kom tsis txhob cuam tshuam rau lub neej kev pab cuam ntawm lub ntsuas, nws raug nquahu kom nce qhov kub ntawm 10 degree / min

7. Lub qhov cub hluav taws xob tsuas yog qhib tau tom qab qhov kub ntawm lub qhov cub ua kom sov li qub, cov qauv ntsuas kub kuj tseem nyob rau lub sijhawm no, thov xyuam xim hnav cov hnab looj tes kub rau kev ua haujlwm;

8. Nws yog ib txwm ua rau cov kab nrib pleb me me tshwm rau saum npoo ntawm cov refractory tom qab siv mus ntev.

9. Lub qhov cub chamber no tsis muaj lub tshuab nqus tsev vacuum, thiab tsis tuaj yeem nkag mus rau hauv cov hluav taws kub, tawg, tshuaj lom thiab corrosive gases;
