Khoom Description

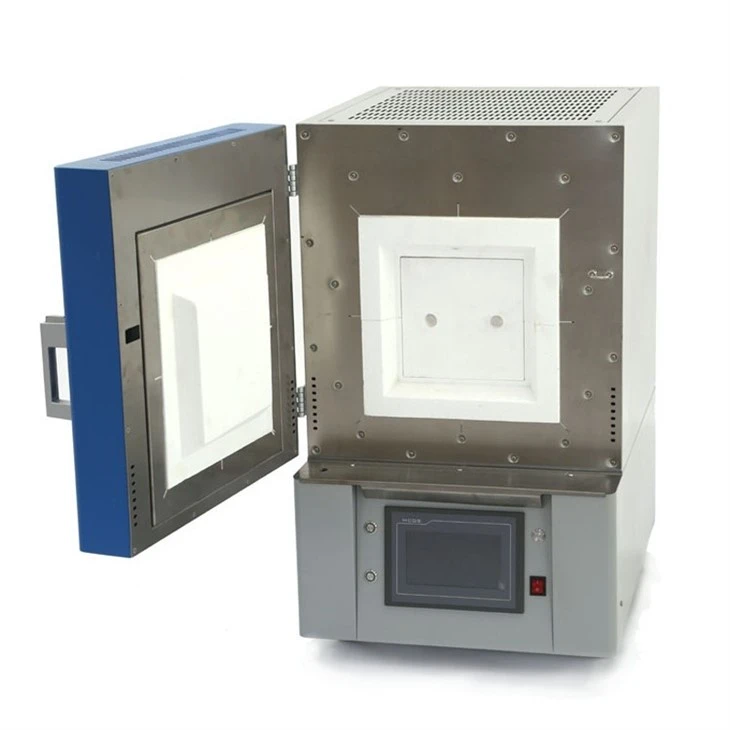

1800 degree Kub kub muffle rauv yog lub siab tshaj plaws tsim kub ntawm lub thawv-hom rauv hom, uas muaj peev xwm ua tau raws li ntau yam kev xav tau ntawm cov neeg siv khoom. Kev tswj qhov kub thiab txias yog ± 1 degree. Cov khoom siv rwb thaiv tsev ob txheej muaj qhov cuam tshuam zoo rwb thaiv tsev. 1800 degree Kub kub muffle rauv muaj kev tswj kub tsis siv neeg thiab tsim nyog rau cov ntawv thov tshiab. Kev sim tshawb fawb hauv kev tsim cov ntaub ntawv, cov khoom siv tshwj xeeb, cov khoom siv hauv tsev thiab lwm yam.
Feature
● Max kub RT -1800 degree
● 1800 Hom Mosi2 cua sov caij, cua sov ntawm ob sab
● 50 ntu programmable nrog PID tswj
● Integrated dual-circuit tiv thaiv, over-temperature thiab burnout tiv thaiv
|
Qauv |
SX2-2-18TP |
SX2-4-18TP |
SX2-9-18TP |
SX2-16-18TP |
|
Qhov Loj: Sab hauv D x W x H (mm) |
100*100*100 |
200*150*150 |
300*200*200 |
400*300*300 |
|
Qhov Loj: Sab nraud D x W x H (mm) |
425*320*568 |
570*470*815 |
670*530*906.2 |
770*620*1055 |
|
Max kub (degree) |
1800 |
1800 |
1800 |
1800 |
|
Ua haujlwm kub (degree) |
0-1700 |
|||
|
Ntim (litres) |
1 |
4.5 |
12 |
36 |
|
Lub zog (KW) |
2 |
4 |
9 |
16 |
|
Qhov voltage (V) |
220 1P |
220 1P |
380 2P |
380 2P |
|
Hom thermocouple |
B |
|||
|
Cua sov ntsiab |
Mosi2 cua sov caij |
|||
|
Temp.Precision |
± 1 degree |
|||
|
Cua sov tus nqi |
0-10 degree / min hloov kho dawb |
|||
|
Chamber khoom |
Siv cov khoom siv zoo alumina microcrystalline fiber ntau |
|||
|
Rauv qauv |
Ob txheej txheej cua-txias qauv, qhov kub thiab txias yog tsawg dua 60 degree |
|||
|
Ntawv pov thawj:CE, ISO, SGS ect, ntau tshaj 30 daim ntawv pov thawj patent |
||||
|
Warranty:Warranty ib xyoos (tsis suav cov khoom hnav) thiab kev txhawb nqa mus ntev |
||||
|
Txhawb OEM / ODM |
||||
Xaiv tau
Sib txawv chamber loj rau koj xaiv;
50 ntu kev pab cuam rau xaiv
LCD kov npo tswj kev xaiv
RS485 / USB chaw nres nkoj los txuas lub computer rau xaiv.
chimney, qhov rooj qhib txoj kev, cua nkag qhov, tsom qhov rais, thiab lwm yam yog nyob ntawm yeem.
