Khoom Description

Lub tshuab nqus tsev sintering rauv siv ob lub plhaub kab rov tav nrog cov dej txias, cov plhaub sab nrauv Carbon steel thiab puab plhaub stainless hlau; Controller nrog 30 ntu PID tswj. Lub tshuab hluav taws xob muaj lub siab purity alumina ceramic fiber board chamber thiab cov cua kub zoo. Lub tshuab nqus tsev sintering rauv yog cov cuab yeej zoo tshaj plaws rau cov khoom siv nqus tsev sintering, kev tshuaj ntsuam xyuas muaj pes tsawg leeg, kev kuaj xyuas zoo, ashing hauv tsev kawm qib siab lab, cov chaw tshawb fawb, thiab lwm yam.

Lub tshuab nqus tsev sintering rauv yog siv dav hauv kev kho cua sov ntawm cov khoom siv hlau lossis cov khoom siv hauv cov khoom siv hauv cov khoom siv qis lossis siab siab, tshwj xeeb tshaj yog siv hauv lub tshuab nqus tsev Sintering thiab Annealing ntawm cov ntaub ntawv xws li stainless hlau, kub kub alloy, hard alloy thiab nonferrous hlau hauv reducibility los yog tiv thaiv huab cua.

Nqus sintering rauv daim ntawv thov teb

Aviation thiab aerospace

Riam phom thiab nkoj

Nuclear kev lag luam

Tsheb thiab Automotive Parts

Mechanical manufacturing

Kev lag luam hluav taws xob

Lub koom haum tshawb fawb

Cov tsev kawm ntawv qib siab

Kev cob qhia kev kho cua sov

Txuj nta

● Max ua haujlwm kub ncav cuag 1750 degree;

● Chamber Volume 1-300L lossis loj dua, txhawb qhov loj me.

● Zoo lub tshuab nqus tsev flange sealing kom paub tseeb tias tsis muaj paug.

● Lub cub tawg chamber yog ceramic fiber nrog thermal rwb thaiv tsev zoo heev;

● Qhov kub yog tswj los ntawm precision SCR nrog qhov tseeb +/-1 C thiab 30 ntu programmable tswj;

● Nrog tshaj kub tswb muaj nuj nqi

Qauv	SV2S-12TP	SV2S-14TP	SV2S-17TP	SV2S-18TP
Chamber loj: D x W x H (mm)	100 * 100 * 100; 200 * 150 * 150; 300 * 200 * 200; 400 * 300 * 300; 600 * 400 * 400; 700 * 500 * 500; 900 * 600 * 600 lossis loj dua;
Max. kub (C)	1200	1400	1700	1800
Ua haujlwm temp. (C)	1100	1300	1600	1700/1750
Ntim (liter)	1 / 4.5 / 12 / 36 / 96 / 175 / 324 los yog loj dua
Lub zog (KW)	Nyob ntawm cov cua sov chamber loj;
Qhov voltage (V)	AC 380V / 415V / 440V / 480V lossis lwm yam.
Hom thermocouple	K (0-1100.C) / S (0-1300.C) / B (0-1750.C)
Cua sov ntsiab	Resistance hlau nrog Mo / SiC pas nrig / MoSi2 pas nrig; Graphite / Molybdenum;
Temp. Precision	± 1 degree
Cua sov tus nqi	0-30 degree / min adjustable; Qhia kom siv 10.C/min hauv qab 1400.C, 1400.C-1600.C 5.C/min
Chamber khoom	zoo alumina ceramic fiber khoom; Graphite muaj / Molybdenum + stainless hlau;
Rauv lub cev qauv	Ob chav kab rov tav rauv lub plhaub nrog cov dej txias, cov plhaub sab nrauv Carbon steel thiab puab plhaub stainless hlau;
Kub tswj	Intelligent PID ntsuas kub tswj, 30 qhov kev pab cuam ntu, SCR tswj, PID parameter nws tus kheej-tuning muaj nuj nqi; qhov kev pab cuam kub nce, kev pab cuam tshav kub preservation, kev pab cuam txias
Vacuum Level (Cold state)	10 Pa; 6.65x10^{4}} ~ 6.65x10^-3Pa
Txhawb OEM / ODM

Standard Accessories

Cov hnab looj tes ua kom sov, Crucible Tongs, tso cua sov, Cov Neeg Siv Khoom Siv, Cov cuab yeej siv.

Xaiv qhov chaw

Cov khoom siv dej txias, Lub tshuab nqus tsev siab dua, cov khoom cua sov ntxiv, cov thermocouple ntxiv; Hloov kho PLC kov npo xws li, lub kaw lus tsis muaj ntawv, Cov kab ke kev sib txuas lus chaw taws teeb, 2-3 roj raws sib xyaw ua ke desktop.

Daim duab nthuav dav

4 tuav sealing qhov rooj, yooj yim qhib thiab kaw.

Cov cua kub zoo nrog polycrystalline rwb thaiv tsev chamber rauv

High quality kub resistant hluav taws thaiv cib

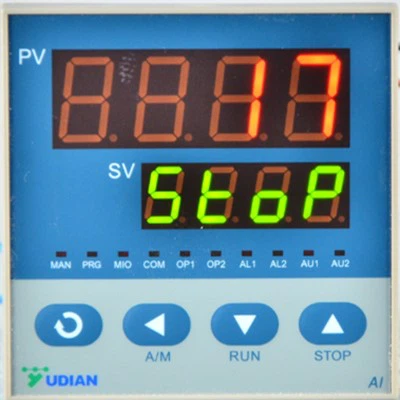

LCD temp. maub los, 30-segment program nrog PID tswj

Multifunctional thiab ua tiav tswj vaj huam sib luag, yooj yim rau siv thiab khiav lag luam

High-zoo hnav-resistant Fuma log, zoo load-bearing

Daim ntawv thov

Lub tshuab nqus tsev sintering rauv yog siv dav hauv kev tshawb fawb thiab kev tsim khoom me me hauv kev lag luam thiab kev lag luam mining, Haum rau lub tshuab nqus tsev sintering ntawm cov alloys nyuaj, stainless hlau txhaj tshuaj molding, stainless hlau tsis-woven fabrics, sib nqus cov ntaub ntawv, optoelectronic cov ntaub ntawv, tsis tshua muaj lub ntiaj teb ruaj khov hlau nplaum cov ntaub ntawv. , dag pob zeb diamond raw cov ntaub ntawv, cov ntaub ntawv ceramic, thiab lwm yam.
