Khoom Description
lab muffle rauv nrog stainless hlau plhaub yog qhov kub thiab txias qhov cub, nws siv ob chav carbon steel txheej plhaub thiab 30 ntu PID tswj. Lub tshuab hluav taws xob muaj lub siab purity alumina polycrystalline fiber ntau cib thiab cov cua kub zoo. Lub qhov cub no nruab nrog cua txias system, uas ua rau kub txias thiab nce sai.
Nws yog cov cuab yeej tshwj xeeb tsim tshwj xeeb rau sintering thiab melting tsom xam ntawm cov hlau, tsis yog hlau thiab lwm cov ntaub ntawv sib xyaw hauv cov chaw soj nstuam ntawm cov tsev kawm qib siab, cov koom haum tshawb fawb tshawb fawb thiab cov lag luam thiab cov lag luam mining.
Laboratory ashing furnaces Feature:
● Sib txawv qhov kub thiab txias xaiv;
● PID tsis siv neeg tswj thiab nws pib-tune muaj nuj nqi.
● Intelligently programmable maub los, Teem cov kev pab cuam dawb;
● Txawv chamber loj tuaj yeem hloov kho.
Laboratory Muffle furnacesTechnical parameters
|
Rauv Shell Structure: |
Muab ob npaug rau txheej carbon steel los yog Stainless hlau phaj plhaub, nto txau nrog kub resistant yas hmoov txheej los xyuas kom meej tias qhov kub thiab txias ntawm lub cub tawg yog tsawg dua los yog sib npaug rau 40.C; |
||
|
Chamber Materials: |
High-qib alumina fiber ceramic board thiab thermal rwb thaiv tsev paj rwb. |
||
|
Rauv qhov rooj: |
Sab qhib qhov rooj; |
||
|
Max. Kub: |
1200.C |
1400.C |
1700.C |
|
Ua haujlwm kub tsis tu ncua: |
1000.C-1100.C |
1300.C |
1600.C |
|
Cua sov ntsiab: |
Fe-Cr-Al alloy kuj nyob ntawm tej |
SiC rod |
MoSi 2 rod |
|
Hom Thermocouple: |
K hom |
S hom |
B hom |
|
Rated voltage & Lub zog: |
AC 110V / 220V / 380V / 415V 50 / 60Hz; Lub zog nyob ntawm qhov loj ntawm chamber. |
||
|
Chamber loj: |
100x100x100mm, 200x150x150mm, 300x200x200mm, 400x300x300mm, loj loj yog muaj. |
||
|
Cua sov tus nqi: |
0-30.C /min, Suggest to use 10.C/min under 1400.C,1400.C-1600.C 5.C/min,>1600.C 1-2.C/min |
||
|
Kub Precision: |
±1.C ; |
||
|
Kub Controller: |
Temp. Controller nrog 1 qhov kev pab cuam cia muaj peev xwm thiab 30 ntu ramp & nyob; PID tsis siv neeg tswj thiab nws pib-tune muaj nuj nqi. Ua nyob rau hauv kev tiv thaiv rau overheating thiab tawg thermocouple. |
||
|
Xaiv qhov chaw: |
Kov npo maub los, tsis muaj ntawv kaw lus, Cov chaw taws teeb tswj kev sib txuas lus, Sab saum toj vent gas chaw nres nkoj, Qhib lub qhov rooj thiab lub hwj chim tawm muaj nuj nqi, Stainless hlau vaj tsev nyob yeem xaiv; |
||
|
Warranty |
Ib xyoos txwv warranty nrog kev txhawb nqa lub neej, tsis suav cov khoom cua sov, cov kiv cua txias, thermocouple thiab ceramic raj puas los ntawm cov neeg siv. Ceeb Toom: Txhua qhov kev puas tsuaj los ntawm kev siv cov roj corrosive thiab acidic, thiab kev puas tsuaj los ntawm kev ua haujlwm tsis raug thiab kev siv tsis raug raws li kev pov hwm ntawm Ib Xyoo Txwv Warranty. |
||
Standard Accessories:
Qhov rooj thaiv 1set, crucible tongs 1pc, Thermal hnab looj tes 1 khub, Phau ntawv ua haujlwm 1pc.
Laboratory Muffle furnaces siv ceeb toom:
1. Tom qab siv lub qhov cub thawj zaug lossis tsis siv lub sijhawm ntev, nws yuav tsum tau ci ntawm li 120 degree rau 1 teev thiab ntawm li 300 degree rau 2 teev ua ntej siv, thiaj li tsis ua rau tawg hauv qhov cub. .
2. Lub qhov cub kub kub yog qhov tsawg, qhov loj ntawm qhov nqus cua sov yog qhov yuav tsum tau ua, yog li qhov cua kub ntawm qhov qis qis yuav tsum tsis txhob ceev heev, thiab qhov sib txawv ntawm cov cua kub ntawm txhua theem yuav tsum tsis txhob loj heev, thiab cov khoom ntawm lub cev thiab tshuaj lom neeg ntawm cov khoom siv sintered yuav tsum tau txiav txim siab tag nrho thaum teeb tsa cov cua sov, kom tsis txhob muaj qhov tshwm sim ntawm cov khoom txau thiab ua rau lub qhov cub ua paug.
3. Cov cua kub ntawm silicon-molybdenum pas nrig yuav tsum tsis txhob ua haujlwm ntev hauv qhov kub ntawm 400-700 degree, txwv tsis pub kub oxidation yuav tshwm sim thiab lub neej kev pab cuam yuav raug cuam tshuam.
4. Qhov kub ntawm lub cub tawg yuav tsum tsis txhob siab tshaj qhov ntsuas kub kom tsis txhob muaj kev puas tsuaj rau cov cua sov thiab cov hauv ob sab phlu.
5. Qhov ntsuas cua txias yuav tsum tsis pub tshaj 10 degree / min, thiab cov blocks refractory yuav tsum tau muab tso ua ntej kaw qhov rooj.
6. Yuav kom tsis txhob cuam tshuam rau lub neej kev pab cuam ntawm lub ntsuas, nws raug nquahu kom nce qhov kub ntawm 10 degree / min
7. Lub qhov cub hluav taws xob tsuas yog qhib tau tom qab qhov kub thiab txias hauv lub cub tawg ua qhov kub thiab txias, cov qauv ntsuas kub kuj tseem nyob rau lub sijhawm no, thov xyuam xim hnav cov hnab looj tes kub rau kev ua haujlwm;
8. Nws yog ib txwm ua rau cov kab nrib pleb me me tshwm rau ntawm qhov chaw ntawm cov refractory tom qab siv mus ntev.
9. Lub qhov cub chamber no tsis muaj lub tshuab nqus tsev vacuum, thiab tsis tuaj yeem nkag mus rau hauv cov nplaim hluav taws kub, tawg, tshuaj lom thiab corrosive gases;
Product details

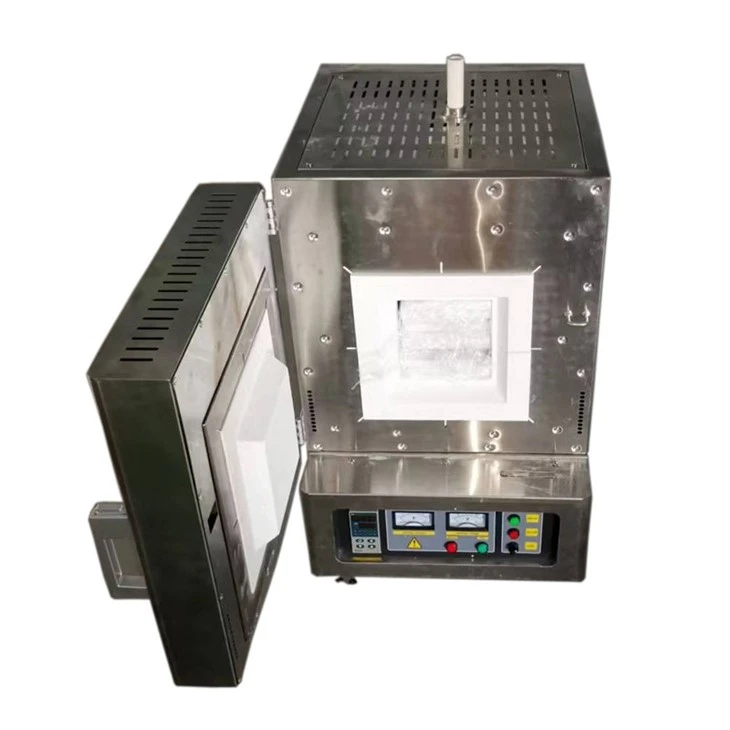

Laboratory Ashing Furnaces
Yooj yim qhov rooj kov xauv, yooj yim qhib thiab kaw

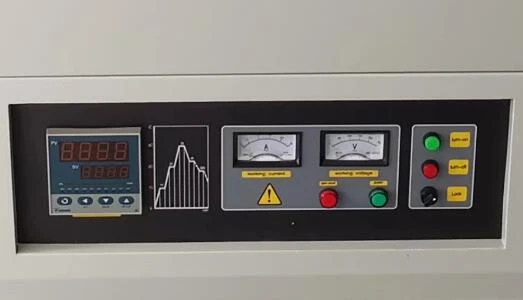

LCD Programmable Temp. controller, 30-segment program nrog PID tswj
High quality kub resistant hluav taws thaiv cib
Tsim nyog layout tswj vaj huam sib luag, yooj yim rau siv thiab khiav lag luam
Khoom siv
Siv nyob rau hauv ntau yam ntawm Laboratory Ashing Furnaces
Laboratory
Hlau
Ceramic
Electronics
Tshuaj
iav
Kev taw qhia txog tuam txhab
Xinyu Technology tau tsim nws tus kheej lub hom phiaj thiab cov xwm txheej nrog cov kev txawj ntse thiab kev nplua nuj hauv cov kev pabcuam. Tag nrho cov kev tsim khoom tau tswj hwm los ntawm ISO9001: 2015 kev ua haujlwm zoo, thiab dhau los ntawm EU daim ntawv pov thawj CE, uas muaj neeg nyob thoob plaws ntiaj teb, suav nrog Tebchaws Meskas, Canada, Mexico, Brazil, Chile, Nyiv, Thaib, Is Nrias teb, Myanmar, Singapore, Malaysia, Pakistan, Iraq, Yemen, Saudi Arabia, Israel, Lub teb chaws Yelemees, United Kingdom ntau tshaj 30 lub teb chaws thiab cheeb tsam.
Pab neeg tshaj lij
20+ Cov kws tshaj lij thiab cov thawj coj loj tswj hwm txhua yam ntawm qhov project
Kev paub nplua nuj hauv kev kho cua sov kev lag luam
Ntau 15+ xyoo dhau los hauv kev lag luam kev kho cua sov, tuaj yeem ua ntau yam kev hloov kho kub kub!
Daim ntawv pov thawj
Kev hwm thiab kev tsim nyog
Cov ntawv pov thawj raug cai, kev pabcuam tomqab muag.
CE
CE
CE
ISO9001
SGS
