Khoom Description

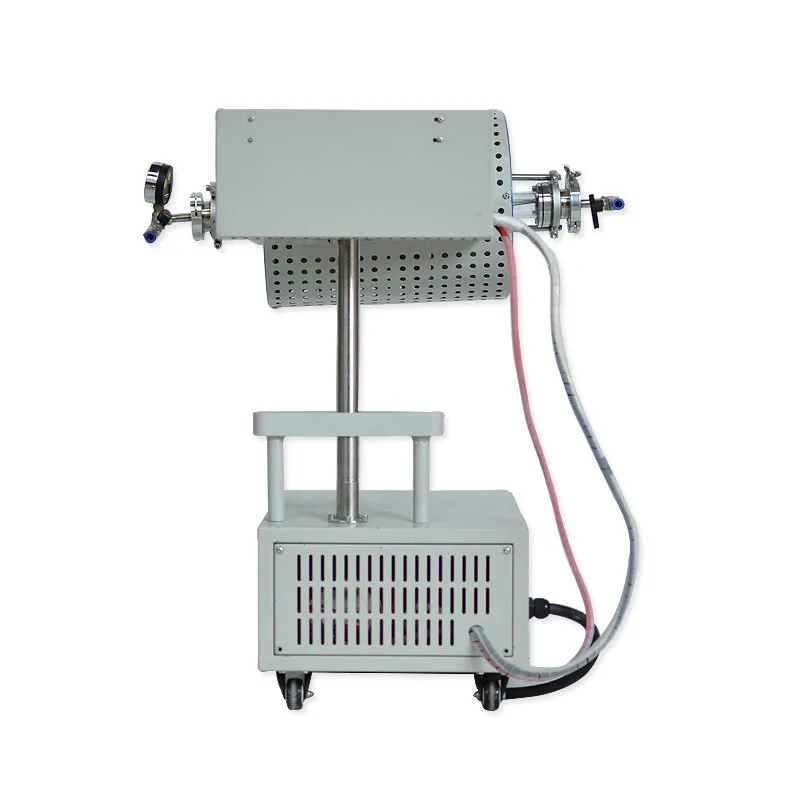

SK2-2-12TP360V multi station tube rauv yog tsim tshwj xeeb rau kev npaj cov qauv me me. Lub tshuab hluav taws xob lub cev tuaj yeem muab tso rau ntsug thiab kab rov tav kom tau raws li cov ntawv thov sib txawv, thiab tseem tuaj yeem tig tau los pab txhawb cov khoom siv tom qab cua sov tiav.
Cov txheej txheem kev teeb tsa suav nrog stainless hlau sealing flanges thiab quartz raj, uas tuaj yeem siv tam sim ntawd los ntawm cov neeg siv khoom thaum lawv txuas rau lub zog.
Feature
● Max ua haujlwm kub tsis tu ncua RT-1100 degree
● Lub cub tawg tuaj yeem tig tau 360 degree.
● Zoo siab Fe-Cr-Al-Mo kuj xaim, cua sov ntawm ob sab, zoo rauv kub uniformity
● 50 ntu programmable thiab PID pib tswj, LED zaub.
● Cov kiv cua txias tuaj yeem txo qhov kub ntawm lub casing
|
Qauv |
SK 2-2-12TP360V |
|
Dimensions: Standard Cua sov cheeb tsam ntev (mm) |
205 hli |
|
Dimensions: Standard Tube txoj kab uas hla (mm) |
∮40mm |
|
Max.temperature |
1200 degree, Nruam ua haujlwm kub 1100 degree. |
|
Qhov voltage (V) |
220V, ib theem |
|
Hom thermocouple |
K |
|
Cua sov ntsiab |
HRE Alloy kuj hlau |
|
Temp.Precision |
± 1 degree |
|
Cua sov tus nqi |
0-30 degree / min hloov kho dawb |
|
Chamber khoom |
Siv cov khoom siv zoo alumina microcrystalline fiber ntau |
|
Rauv qauv |
Ob txheej txheej cua-txias qauv, qhov kub thiab txias yog tsawg dua 60 degree |
|
Kub tswj |
Intelligent PID ntsuas kub tswj, 30 qhov kev pab cuam ntu, SSR tswj, PID parameter nws tus kheej-tuning muaj nuj nqi; qhov kev pab cuam kub nce, kev pab cuam tshav kub preservation, kev pab cuam txias |
|
Inlet gas / Atmosphere |
Nws tuaj yeem sau nrog ntau yam kev tiv thaiv lossis kev puas tsuaj gases, Inert gases, sib xyaw gases, nitrogen, oxygen, thiab lwm yam. |
|
Gas tswj |
Cov cua nkag tuaj yeem teeb tsa 1 lossis ntau dua cov cua nkag, txhua qhov cua nkag yog muab nrog rab koob valve, txuas nrog lub tshuab nqus tsev ntsuas. Lub qhov hluav taws xob cua txuas nrog ib lub qhov hluav taws xob, thiab txhua lub qhov hluav taws xob tau nruab nrog rab koob li qub. Nruab nrog lub tshuab nqus tsev twj. |
|
Lub tshuab nqus tsev |
-0.1Mpa Siv Stainless hlau nqus tsev flange nrog lub tshuab nqus tsev ntsuas, valve; Yooj yim rau unload, ob lub foob
|
|
Txais tos OEM / ODM |
|
Standard Accessories
looj hnab looj tes|Crucible nuv|Thermocouple|Tube Thaiv|User Manual |Tools|Lub tshuab nqus tsev vacuum|Quartz raj|Flange|Sealing nplhaib|10mm roj hose|Flange kev them nyiaj yug.
Xaiv tau
Cov cua kub sib txawv rau koj xaiv;
LCD kov npo tswj kev xaiv
RS485 chaw nres nkoj mus txuas lub computer rau xaiv.
Daim duab nthuav dav
Daim ntawv thov
1200 degree multi station tube rauv yog siv rau kev sim me me workpiece cov ntaub ntawv, thiab yog siv thaum kub yog 1100 degrees los yog qis dua. Lub sintering yog zoo ib yam, thiab 360 degrees yuav tig tau dawb do. Tom qab sintering, nws yog qhov yooj yim dua rau nchuav tawm, tshwj xeeb tshaj yog tsim rau sintering hauv lub tshuab nqus tsev lossis qhov chaw ib puag ncig.
