Khoom Description

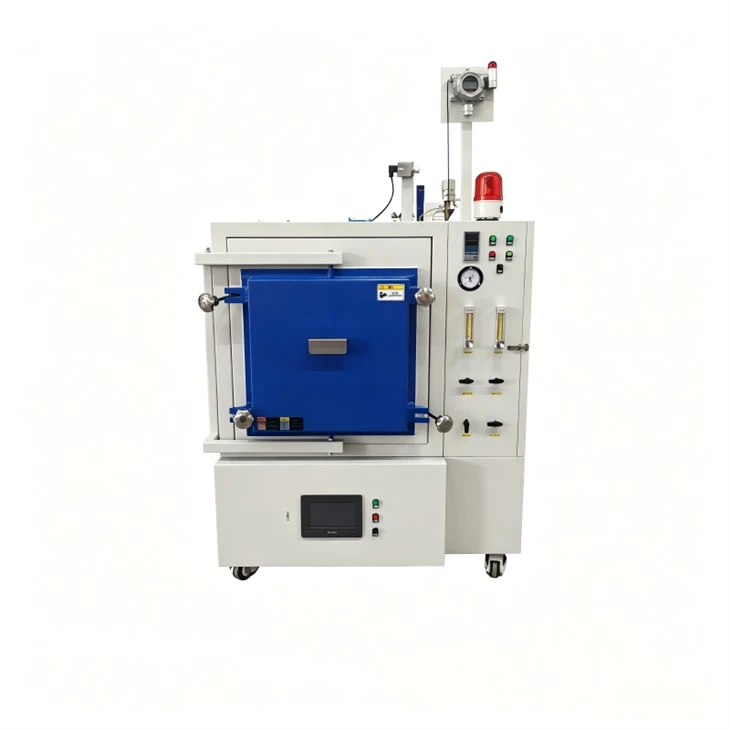

Hydrogen annealing rauv yog tsim tshwj xeeb rau sintering lossis annealing cov ntaub ntawv hauv hydrogen lossis inert gas ib puag ncig. Nws qhov kub siab tshaj plaws tuaj yeem ncav cuag 1200 degree. Nws siv alumina fiber ntau li cov khoom siv hauv lub cev thiab HRE tsis kam xaim ua cov khoom cua sov. Rau cov ntaub ntawv uas yuav tsum tau sintered nyob rau hauv ib tug inert roj los yog txo cov pa ib puag ncig (xws li fluorescent cov ntaub ntawv, titanium alloys, thiab lwm yam), qhov cub hluav taws xob no yog ib qho kev xaiv zoo heev.
Feature ntawm Hydrogen Atmosphere annealing Rauv
1. Ntau-lub hom phiaj cua sov ua kom sov (suav nrog hydrogen)
2. Qhov kub siab tshaj plaws tuaj yeem ncav cuag 1200 degree
3. Hydrogen ignition + hydrogen detection + tawg - khoom pov thawj, Xyuas kom muaj kev nyab xeeb
4. Muaj los ntawm 1L txog 36L, lossis customized
Cov ntaub ntawv tshwj xeeb-daim ntawv
|
Max/Nruam kub |
Volume (Qhov Loj / D * W * H) |
Hwj chim |
Inert gas hauv |
Lub tshuab nqus tsev twj |
Cua sov ntsiab |
Thermocouple |
|
1200/1100 degree |
1L(100*100*100) |
220V 1P 1KW TSI |
Muaj |
suav nrog |
HRE kuj hlau |
K |
|
4.5L(200*150*150) |
220V 1P 2KW 1 |
|||||
|
12L(300*200*200) |
220V 1P 6KW TSI |
|||||
|
36L(400*300*300) |
380V 3P 9KW TSI |
|||||
|
1400/1300 degree |
1L(100*100*100) |
220V 1P 2KW 1 |
Muaj |
suav nrog |
SiC cov khoom cua sov |
S |
|
4.5L(200*150*150) |
220V 1P 4KW TSI |
|||||
|
12L(300*200*200) |
220V 1P 9KW TSI |
|||||
|
36L(400*300*300) |
380V 3P 16KW TSI |
|||||
|
1700/1600 degree |
1L(100*100*100) |
220V 1P 2KW 1 |
Muaj |
suav nrog |
MoSi2 cov khoom cua sov |
B |
|
4.5L(200*150*150) |
220V 1P 4KW TSI |
|||||
|
12L(300*200*200) |
220V 1P 9KW TSI |
|||||
|
36L(400*300*300) |
380V 3P 16KW TSI |
|||||
|
Hydrogen Atmosphere annealing Rauv rau cov yam ntxwv |
||||||
|
Kub tswj |
Yudian 518P kub maub los, PID maub los, 30 ntu qhov kub thiab txias - lub sijhawm cov kev pab cuam, Tshaj rhuab tiv thaiv, tawg thermocouple tswb, tshaj qhov kub thiab txias txwv kev tiv thaiv, cov ntaub ntawv tiv thaiv thaum fais fab tuag yuam kev |
|||||
|
Hydrogen kev ruaj ntseg system |
Cov cuab yeej hluav taws xob + tawg- cov khoom pov thawj + cov cuab yeej kuaj pom + lub tswb |
|||||
|
Kev sib khi |
Lub qhov rooj rauv yog ua los ntawm ib qho chaw sib tsoo thiab milling, thiab cov khoom siv silicone yog embedded thiab kaw, thiab tes log yog xauv, uas muaj kev sib khi zoo. |
|||||
|
Chamber |
Cov khoom siv thoob ntiaj teb qib siab tshaj plaws Al2O3 ceramic fiber ntau, kub siab -ua haujlwm, thermal shock kuj, txuag hluav taws xob, txuag 60% mus rau 80% lub zog dua li cov khoom siv hluav taws kub, sib dua, tsis tawg, tsis muaj kab mob. |
|||||
|
Cua sov tus nqi |
Tsawg dua lossis sib npaug li 30℃/ feeb |
|||||
|
Rauv qauv |
Muab ob npaug rau txheej vaj tsev qauv tsim kom paub tseeb tias qhov zoo ntawm qhov kub thiab txias tsis sib xws thiab kev nyab xeeb ntawm cov neeg siv lub tshuab siv, nrog rau cov cua txias rau hauv qab kom paub meej tias kev nyab xeeb hluav taws xob |
|||||
|
Applied cua |
Ar, N2, He, H2., thiab lwm yam (tsis yog-hydrogen ib puag ncig, hydrogen ib puag ncig Tsawg dua lossis sib npaug li 1450 degree) |
|||||
|
Lub tshuab nqus tsev siab ntsuas |
-0.1Mpa rau 0.1Mpa (Lub siab zoo sab hauv yuav tsum tsawg dua lossis sib npaug rau 0.02Mpa kom paub tseeb tias muaj kev nyab xeeb) |
|||||
|
Max nqus degree |
-0.1Mpa |
|||||
|
Lub tshuab nqus tsev twj |
Rotary vane nqus tsev vacuum |
|||||
|
Float flow -meters |
Siab zoo ntab ntws ntsuas, 60 ~ 600ml / feeb lossis raws li tus neeg thov |
|||||
|
Lub log |
Yooj yim, txav tau, hloov tau universal log nrog nres muaj nuj nqi, suav nrog |
|||||
|
Daim ntawv pov thawj |
CE, ISO9001: 2015 tau ntawv pov thawj |
|||||
Cov khoom lag luam ua qauv qhia (Basic version + Ntxiv 1set ntawm H2 kev ruaj ntseg system)
|
|
|
|
|
HRE kuj hlau |
SiC cov khoom cua sov |
MoSi2 cov khoom cua sov |
|
|
|
|
|
Qhov ntau raws li chamber loj xaiv |
||
|
|
|
|
|
Ignition tswj thiab tswb |
Hlawv xeev |
H2 soj |
|
|
|
|
|
Precision maub los & ntsuas Circuit Court |
Gas tswj channel & ntab flowmeter |
Rotary vane nqus tsev vacuum |
Kev cuam tshuam ntawm cov cua sib txawv ntawm cov khoom ua haujlwm kub
|
Huab cua |
1700 typ |
1800 typ |
1850 typ |
|
Cua |
1700 |
1800 |
1830 |
|
N2, Nitrogen |
1600 |
1700 |
1700 |
|
Ar Ne Argon, Helium |
1600 |
1700 |
1700 |
|
80℃Qhuav Hydrogen (dew point) |
1150 |
1150 |
1150 |
|
20℃ntub Hydrogen (dew point) |
1450 |
1450 |
1450 |
|
Mix (piv txwv li . 10% CO2, 50% CO, 15% H2) |
1600 |
1700 |
1700 |
|
Mix (piv txwv li . 40% CO2, 20% CO) |
1400 |
1450 |
1450 |
|
Mix (piv txwv li . 40% CO2, 20% CO (8% H2) |
1400 |
1450 |
1450 |
