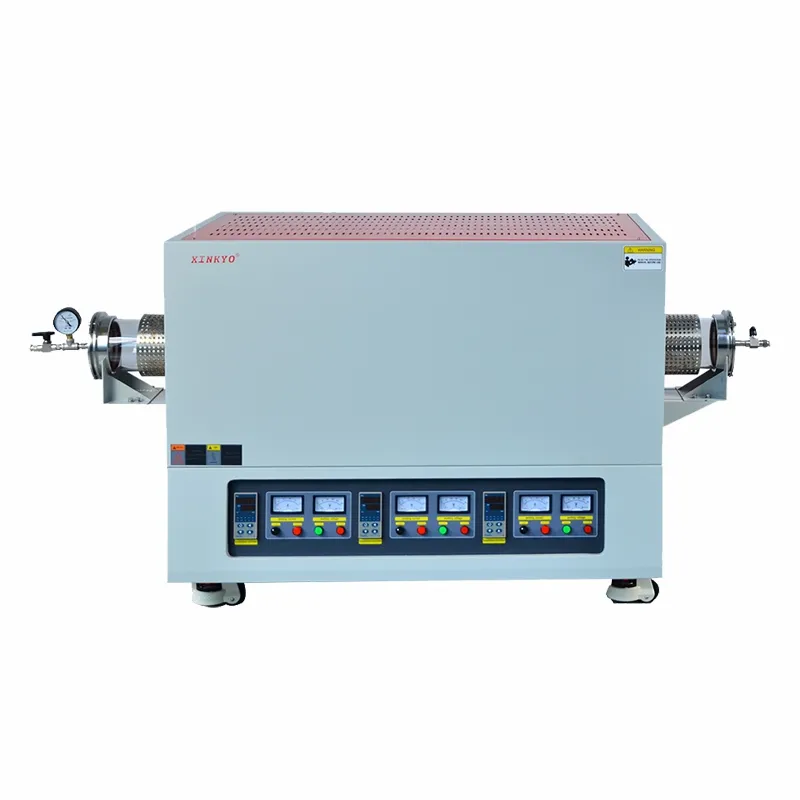

Nthuav dav ntawm Multi-temperature zone tube rauv
|
Qauv |
SK2Z-2-12TPC2 |
|
Dimensions: Standard Cua sov cheeb tsam ntev (mm) |
205mm +205 hli |
|
Dimensions: Standard Tube txoj kab uas hla (mm) |
∮40mm |
|
Max.temperature |
1200 degree, Nruam ua haujlwm kub 1100 degree. |
|
Qhov voltage (V) |
110 los yog 220 1P |
|
Hom thermocouple |
K (1200 degree) |
|
Cua sov ntsiab |
HRE Alloy kuj hlau (1200 degree) |
|
Temp.Precision |
± 1 degree |
|
Cua sov tus nqi |
0-30 degree / min hloov kho dawb |
|
Chamber khoom |
Siv cov khoom siv zoo alumina microcrystalline fiber ntau |
|
Rauv qauv |
Ob txheej txheej cua-txias qauv, qhov kub thiab txias yog tsawg dua 60 degree Ob thaj chaw cua sov ntawm lub cub tawg, tuaj yeem tswj hwm txhua qhov kub thiab txias. |
|
Kub tswj |
Intelligent PID ntsuas kub tswj, 30 lossis 50 qhov kev pab cuam ntu, Tsis tas yuav ua haujlwm, nres ntawm koj tus kheej tom qab cua sov thiab cua txias tiav. |
|
Inlet gas / Atmosphere |
Nws tuaj yeem sau nrog ntau yam kev tiv thaiv lossis kev puas tsuaj gases, Inert gases, sib xyaw gases, nitrogen, oxygen, thiab lwm yam. |
|
Gas tswj |
Cov cua nkag tuaj yeem teeb tsa 1 lossis ntau dua cov cua nkag, txhua qhov cua nkag yog muab nrog rab koob valve, txuas nrog lub tshuab nqus tsev ntsuas. Lub qhov hluav taws xob cua txuas nrog ib lub qhov hluav taws xob, thiab txhua lub qhov hluav taws xob tau nruab nrog rab koob li qub. Nruab nrog lub tshuab nqus tsev twj. |
|
Lub tshuab nqus tsev |
-0.1Mpa Ib tug ncej rotary vane twj tso kua mis. Cov kev xaiv muaj xws li bipolar rotary vane twj, diffusion twj, molecular twj, thiab lwm yam.
|
|
Txais tos OEM / ODM |
|
Standard Accessories
looj hnab looj tes|Crucible nuv|Thermocouple|Tube Thaiv|User Manual |Tools|Lub tshuab nqus tsev vacuum|Quartz los yog Alumina raj|Flange|Sealing nplhaib|10mm roj hose|Flange kev them nyiaj yug|lub tshuab cua sov
Xaiv tau
Cov cua kub sib txawv rau koj xaiv;
LCD kov npo tswj kev xaiv
RS485 / USB chaw nres nkoj los txuas lub computer rau xaiv.
Daim duab nthuav dav
Daim ntawv thov
Ntau qhov kub ntawm cheeb tsam tube rauv yog siv dav hauv kev tshawb fawb thiab kev tsim khoom me me hauv kev lag luam thiab kev lag luam mining. Txhua cheeb tsam kub tuaj yeem tswj tau tus kheej, thiab sib txawv cua sov thiab cua txias tuaj yeem teeb tsa. Cov ntaub ntawv sib txawv tuaj yeem muab tso rau hauv txhua cheeb tsam kub, ua tiav kev siv ob lub tshuab. Siv dav hauv ceramics, metallurgical sintering, tempering, annealing, thiab lwm yam.
Cov lus qhia sov
1. Thov nyeem phau ntawv ua haujlwm kom zoo ua ntej siv.
2. Vim lub fragility ntawm quartz raj, thov siv nws raws li qhov yuav tsum tau ua.
3. Thov ua tib zoo saib xyuas kev nyab xeeb rau kev ua haujlwm kub.
4. Thov ua tib zoo tshuaj xyuas cov cuab yeej thaum tau txais thiab muab cov lus teb raws sij hawm yog tias muaj teeb meem.
