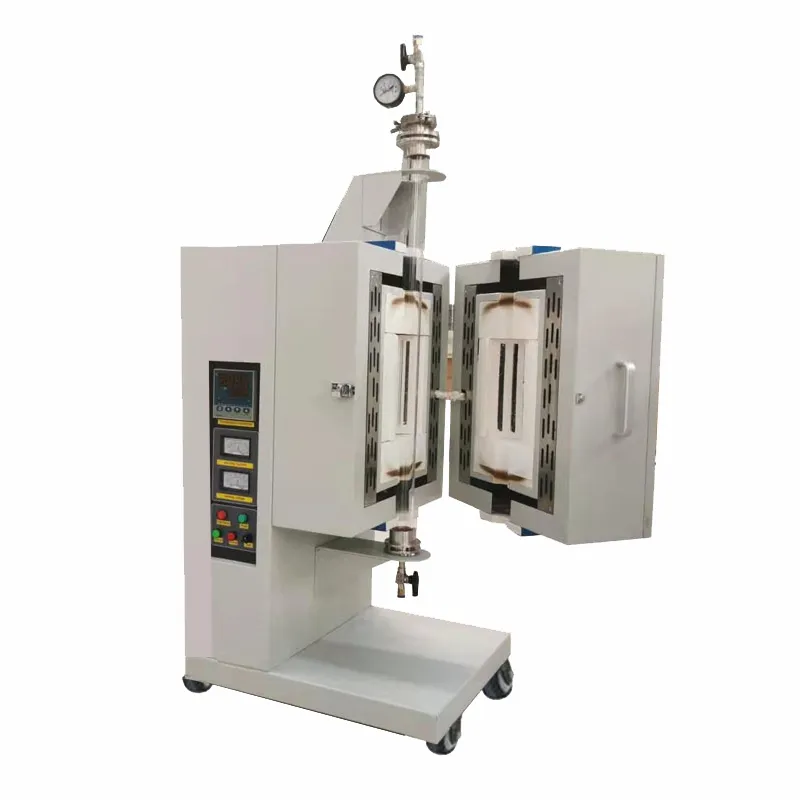

Nthuav dav ntawm Vertical nqus raj rauv
|
Qauv |
SK2V-1-12TPA2 |
|
Dimensions: Standard Cua sov cheeb tsam ntev (mm) |
205 hli |
|
Dimensions: Standard Tube txoj kab uas hla (mm) |
∮40mm |
|
Max.temperature |
1200 degree, Nruam ua haujlwm kub 1100 degree. |
|
Qhov voltage (V) |
110 los yog 220 1P |
|
Hom thermocouple |
K (1200 degree) |
|
Cua sov ntsiab |
HRE Alloy kuj hlau (1200 degree) |
|
Temp.Precision |
± 1 degree |
|
Cua sov tus nqi |
0-30 degree / min hloov kho dawb |
|
Chamber khoom |
Siv cov khoom siv zoo alumina microcrystalline fiber ntau |
|
Rauv qauv |
Ob txheej txheej cua-txias qauv, qhov kub thiab txias yog tsawg dua 60 degree Cov kiv cua txias tuaj yeem txo qhov kub ntawm lub casing. |
|
Kub tswj |
Intelligent PID ntsuas kub tswj, 30 lossis 50 qhov kev pab cuam ntu, SSR tswj, PID parameter nws tus kheej-tuning muaj nuj nqi; qhov kev pab cuam kub nce, kev pab cuam tshav kub preservation, kev pab cuam txias |
|
Inlet gas / Atmosphere |
Nws tuaj yeem sau nrog ntau yam kev tiv thaiv lossis kev puas tsuaj gases, Inert gases, sib xyaw gases, nitrogen, oxygen, thiab lwm yam. |
|
Gas tswj |
Cov cuab yeej muaj ib qho kev nkag mus thiab tso tawm, thiab lub ntsuas ntsuas siab tau nruab rau ntawm qhov chaw nres nkoj tso pa. Qhov tso pa tawm tsis tuaj yeem siab tshaj 0.02Mpa, thiab xaiv ntau yam khoom siv thiab sib xyaw ua ke. |
|
Lub tshuab nqus tsev |
-0.1Mpa Siv Stainless hlau nqus flange nrog lub tshuab nqus tsev vacuum, valve; Yooj yim rau unload, ob lub foob
|
|
Txais tos OEM / ODM |
|
Standard Accessories
looj hnab looj tes|Crucible nuv|Thermocouple|Tube Thaiv|User Manual |Tools|Lub tshuab nqus tsev vacuum|Quartz los yog Alumina raj|Flange|Sealing nplhaib|10mm roj hose|Flange kev them nyiaj yug|lub tshuab cua sov
Xaiv tau
Cov cua kub sib txawv rau koj xaiv;
LCD kov npo tswj kev xaiv
RS485 / USB chaw nres nkoj los txuas lub computer rau xaiv.

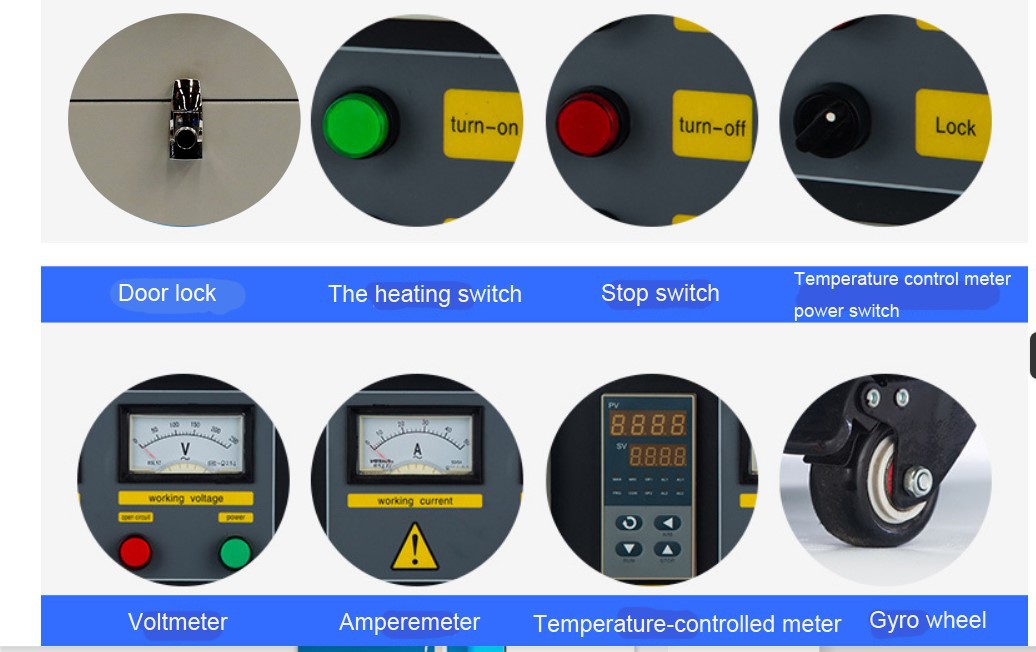

Daim duab nthuav dav
Daim ntawv thov
Vertical tube furnaces yog siv dav hauv kev tshawb fawb thiab kev tsim khoom me me hauv kev lag luam thiab kev lag luam mining, nrog rau hauv ceramics, metallurgy, electronics, iav, tshuaj lom neeg kev lag luam, machinery, refractory cov ntaub ntawv, tshiab cov ntaub ntawv tsim, tshwj xeeb cov ntaub ntawv, tsev cov ntaub ntawv, sintering. , thiab lwm yam koom nrog hauv kev tshawb fawb thiab kev qhia hauv tsev kawm qib siab thiab tsev kawm qib siab. , xws li sintering, annealing, tempering, quenching thiab lwm yam txheej txheem.
Warranty
Ib xyoo warranty thiab kev pab txhawb nqa mus ntev
Cov lus qhia tshwj xeeb:
1. Cov khoom siv xws li cov khoom siv cua sov, quartz raj, qauv crucible, thiab lwm yam tsis nyob hauv lub sijhawm lav.
2. Kev puas tsuaj los ntawm kev siv cov roj corrosive thiab cov roj acid tsis muaj kev tiv thaiv.
